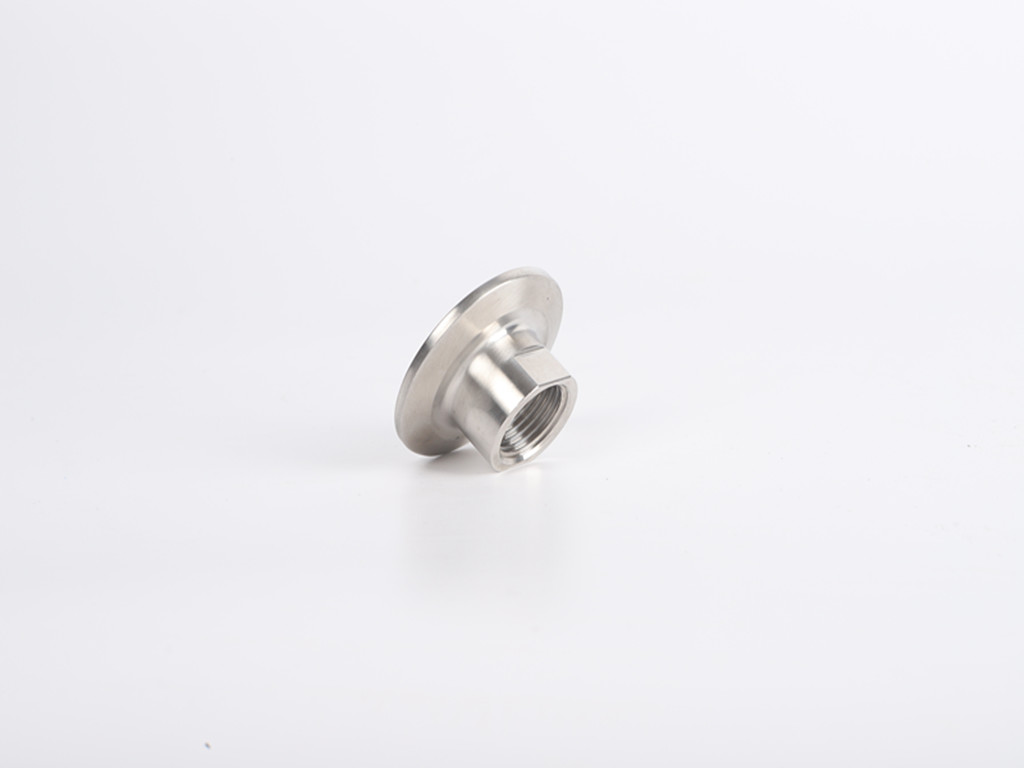

HongTaivalve-Sanitary food grade Tri-clamp ferrule to 1/2″ FNPT-size dn15-dn150-HTV-TCF002

0 Review(s)

$0.00

Model No. HT-TRT001
Max Working Pressure 1.0mpa/10Bars Connection End Triclamp/Weld/FNPT/MNPT
Max Working Temperature 150°C Operation By Manual,Pneumatic,Electric
Body Material SS316L,SS304 Sealing Material Silicone, EPDM, Viton, PTFE, or NBR
Inner Surface finish Ra 0.5 External Surface finish: Ra 0.8
Specification 1/2″-12″ Certification Raw material report/finished quality report
HS CODE 7307290000 Finish Mirror polish or Matt polish
Raw Material technique Forging or Casting Processing Machine LG Mazak CNC Machine
Design Standard 3A or DIN,SMS,ISO/IDF Application Food or Beverage industrial Usage
Transport Package Foamed Plastic+Wooden case Origin Wenzhou China

SHARE:

Facebook-f Instagram Youtube Linkedin
category:

Description

Description

Stainless steel tri-clamp fittings are the most popular style of process line equipment used within the food, beverage, and pharmaceutical industries.

These fittings quickly create a leak-proof connection to allow for easy assembly, routine maintenance and inspection.

Tri-Clamp connections require a gasket and clamp to complete a leak-proof seal.

**Stainless Steel Sanitary Quick Clamp Adapters – Thread Conversion**
High-polish 316L/304 stainless steel quick clamp adapters. Converts between DIN/ISO clamp fittings, hose tails, and NPT/BSPP threads. Hygienic design; CIP/SIP compatible.
**Types & Sizes:**
– **Clamp-to-Internal Thread (Female):** 1/2″ clamp × 1/2″-1″ NPT/BSPP; DIN 32676/ISO 2852.
– **Clamp-to-External Thread (Male):** 3/4″ clamp × 1/2″-2″ NPT/BSPP; Tri-clamp groove depth 6.5mm.
– **Clamp-to-Hose Tail:** 1″ clamp × DN15-DN50 hose barb (12mm-50mm hose ID).
– **Clamp Reducers:** 1.5″×1″, 2″×1.5″; 304 clamp collars with 0.8μm Ra finish.
– **Dual Thread Adapters:** 1/2″ female NPT × 3/4″ male BSPP.
**Specs:**
EPDM/FKM/PTFE gaskets; 10 bar max pressure; -20°C to 150°C. FDA/EHEDG compliant. Electropolished (EP) or mechanical polish (MP).
**Applications:** Pharma, food, biotech pipelines. Zero stagnation; ASME BPE-aligned.
